k8s部署elasticsearch7集群并加密
创建命名空间
apiVersion: v1
kind: Namespace #类别
metadata:
name: elasticsearch #名称空间名字
labels:
app: elasticsearch创建StorageClass
vim storageclass-es.yaml
---
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: elasticsearch
provisioner: nfs.csi.k8s.io
parameters:
server: 192.168.2.193
share: /nfs/data
# csi.storage.k8s.io/provisioner-secret is only needed for providing mountOptions in DeleteVolume
# csi.storage.k8s.io/provisioner-secret-name: "mount-options"
# csi.storage.k8s.io/provisioner-secret-namespace: "default"
reclaimPolicy: Delete
volumeBindingMode: WaitForFirstConsumer
allowVolumeExpansion: true
mountOptions:
- nfsvers=4.2生成证书并在k8s里面创建
docker run --name es-certutil -i -w /tmp docker.elastic.co/elasticsearch/elasticsearch:7.16.2 /bin/sh -c \
"elasticsearch-certutil ca --out /tmp/es-ca.p12 --pass '' && \
elasticsearch-certutil cert --name security-master --dns \
security-master --ca /tmp/es-ca.p12 --pass '' --ca-pass '' --out /tmp/elastic-certificates.p12"
docker cp es-certutil:/tmp/elastic-certificates.p12 ./
kubectl -n elasticsearch create secret generic elastic-certificates --from-file=./elastic-certificates.p12部署master
apiVersion: apps/v1
kind: StatefulSet #适用于持久化存储集群
metadata:
namespace: elasticsearch
name: elasticsearch-master
labels:
app: elasticsearch
role: master #承担的角色
spec:
serviceName: elasticsearch-master
replicas: 3 #负载3
selector:
matchLabels:
app: elasticsearch
role: master
template:
metadata:
labels:
app: elasticsearch
role: master
spec:
containers:
- name: elasticsearch
image: elasticsearch:7.16.2
imagePullPolicy: IfNotPresent
command: ["bash", "-c", "ulimit -l unlimited && sysctl -w vm.max_map_count=262144 && chown -R elasticsearch:elasticsearch /usr/share/elasticsearch/data && exec su elasticsearch docker-entrypoint.sh"]
ports:
- containerPort: 9200
name: http
- containerPort: 9300
name: transport
env:
#- name: discovery.seed_hosts
# value: "elasticsearch-master-0.elasticsearch-master,elasticsearch-master-1.elasticsearch-master,elasticsearch-master-2.elasticsearch-master"
- name: discovery.seed_hosts #es集群host（k8s独有的集群命名规则）
value: "elasticsearch-master-0.elasticsearch-master,elasticsearch-master-1.elasticsearch-master,elasticsearch-master-2.elasticsearch-master,elasticsearch-data-0.elasticsearch-data,elasticsearch-data-1.elasticsearch-data,elasticsearch-data-2.elasticsearch-data,elasticsearch-data-3.elasticsearch-data,elasticsearch-data-4.elasticsearch-data,elasticsearch-client-0.elasticsearch-client,elasticsearch-client-1.elasticsearch-client,elasticsearch-client-2.elasticsearch-client"
- name: cluster.initial_master_nodes
value: "elasticsearch-master-0,elasticsearch-master-1,elasticsearch-master-2"
- name: ES_JAVA_OPTS
value: -Xms1G -Xmx1G #限制jvm运行内存
- name: node.master #主负责调度
value: "true" #特别注意打开对应的角色关闭其他角色
- name: node.ingest #负责客户端访问
value: "false"
- name: node.data #负责数据存储
value: "false"
- name: cluster.name
value: "elasticsearch"
- name: node.name
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: xpack.security.enabled
value: "true"
- name: xpack.security.transport.ssl.enabled
value: "true"
- name: xpack.monitoring.collection.enabled
value: "true"
- name: xpack.security.transport.ssl.verification_mode
value: "certificate"
- name: xpack.security.transport.ssl.keystore.path
value: "/usr/share/elasticsearch/config/elastic-certificates.p12"
- name: xpack.security.transport.ssl.truststore.path
value: "/usr/share/elasticsearch/config/elastic-certificates.p12"
volumeMounts:
- mountPath: /usr/share/elasticsearch/data
name: pv-storage-elastic-master #名字要和volumeClaimTemplates的一致
- name: elastic-certificates #刚才创建的证书挂载到pod里
readOnly: true
mountPath: "/usr/share/elasticsearch/config/elastic-certificates.p12"
subPath: elastic-certificates.p12
- mountPath: /etc/localtime
name: localtime
securityContext:
privileged: true
volumes:
- name: elastic-certificates
secret:
secretName: elastic-certificates
- hostPath:
path: /etc/localtime
name: localtime
volumeClaimTemplates:
- metadata:
name: pv-storage-elastic-master #volumeMounts会用到
spec:
accessModes: [ "ReadWriteOnce" ]
storageClassName: "elasticsearch" #之前创建的存储类名字
resources:
requests:
storage: 100Gi部署data
apiVersion: apps/v1
kind: StatefulSet
metadata:
namespace: elasticsearch
name: elasticsearch-data
labels:
app: elasticsearch
role: data
spec:
serviceName: elasticsearch-data
replicas: 5
selector:
matchLabels:
app: elasticsearch
role: data
template:
metadata:
labels:
app: elasticsearch
role: data
spec:
containers:
- name: elasticsearch
image: elasticsearch:7.16.2
imagePullPolicy: IfNotPresent
command: ["bash", "-c", "ulimit -l unlimited && sysctl -w vm.max_map_count=262144 && chown -R elasticsearch:elasticsearch /usr/share/elasticsearch/data && exec su elasticsearch docker-entrypoint.sh"]
ports:
- containerPort: 9200
name: http
- containerPort: 9300
name: transport
env:
- name: discovery.seed_hosts
value: "elasticsearch-master-0.elasticsearch-master,elasticsearch-master-1.elasticsearch-master,elasticsearch-master-2.elasticsearch-master,elasticsearch-data-0.elasticsearch-data,elasticsearch-data-1.elasticsearch-data,elasticsearch-data-2.elasticsearch-data,elasticsearch-data-3.elasticsearch-data,elasticsearch-data-4.elasticsearch-data,elasticsearch-client-0.elasticsearch-client,elasticsearch-client-1.elasticsearch-client,elasticsearch-client-2.elasticsearch-client"
- name: cluster.initial_master_nodes
value: "elasticsearch-master-0,elasticsearch-master-1,elasticsearch-master-2"
- name: ES_JAVA_OPTS
value: -Xms1G -Xmx1G
- name: node.master
value: "false"
- name: node.ingest
value: "false"
- name: node.data
value: "true"
- name: cluster.name
value: "elasticsearch"
- name: node.name
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: xpack.security.enabled
value: "true"
- name: xpack.security.transport.ssl.enabled
value: "true"
- name: xpack.monitoring.collection.enabled
value: "true"
- name: xpack.security.transport.ssl.verification_mode
value: "certificate"
- name: xpack.security.transport.ssl.keystore.path
value: "/usr/share/elasticsearch/config/elastic-certificates.p12"
- name: xpack.security.transport.ssl.truststore.path
value: "/usr/share/elasticsearch/config/elastic-certificates.p12"
volumeMounts:
- mountPath: /usr/share/elasticsearch/data
name: pv-storage-elastic-data
- name: elastic-certificates
readOnly: true
mountPath: "/usr/share/elasticsearch/config/elastic-certificates.p12"
subPath: elastic-certificates.p12
- mountPath: /etc/localtime
name: localtime
securityContext:
privileged: true
volumes:
- name: elastic-certificates
secret:
secretName: elastic-certificates
- hostPath:
path: /etc/localtime
name: localtime
volumeClaimTemplates:
- metadata:
name: pv-storage-elastic-data
spec:
accessModes: [ "ReadWriteOnce" ]
storageClassName: "local-storage"
resources:
requests:
storage: 100Gi部署client
apiVersion: apps/v1
kind: StatefulSet
metadata:
namespace: elasticsearch
name: elasticsearch-client
labels:
app: elasticsearch
role: client
spec:
serviceName: elasticsearch-client
replicas: 3
selector:
matchLabels:
app: elasticsearch
role: client
template:
metadata:
labels:
app: elasticsearch
role: client
spec:
containers:
- name: elasticsearch
image: elasticsearch:7.16.2
imagePullPolicy: IfNotPresent
command: ["bash", "-c", "ulimit -l unlimited && sysctl -w vm.max_map_count=262144 && chown -R elasticsearch:elasticsearch /usr/share/elasticsearch/data && exec su elasticsearch docker-entrypoint.sh"]
ports:
- containerPort: 9200
name: http
- containerPort: 9300
name: transport
env:
- name: discovery.seed_hosts
value: "elasticsearch-master-0.elasticsearch-master,elasticsearch-master-1.elasticsearch-master,elasticsearch-master-2.elasticsearch-master,elasticsearch-data-0.elasticsearch-data,elasticsearch-data-1.elasticsearch-data,elasticsearch-data-2.elasticsearch-data,elasticsearch-data-3.elasticsearch-data,elasticsearch-data-4.elasticsearch-data,elasticsearch-client-0.elasticsearch-client,elasticsearch-client-1.elasticsearch-client,elasticsearch-client-2.elasticsearch-client"
- name: cluster.initial_master_nodes
value: "elasticsearch-master-0,elasticsearch-master-1,elasticsearch-master-2"
- name: ES_JAVA_OPTS
value: -Xms1G -Xmx1G
- name: node.master
value: "false"
- name: node.ingest
value: "true"
- name: node.data
value: "false"
- name: cluster.name
value: "elasticsearch"
- name: node.name
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: xpack.security.enabled
value: "true"
- name: xpack.security.transport.ssl.enabled
value: "true"
- name: xpack.monitoring.collection.enabled
value: "true"
- name: xpack.security.transport.ssl.verification_mode
value: "certificate"
- name: xpack.security.transport.ssl.keystore.path
value: "/usr/share/elasticsearch/config/elastic-certificates.p12"
- name: xpack.security.transport.ssl.truststore.path
value: "/usr/share/elasticsearch/config/elastic-certificates.p12"
volumeMounts:
- mountPath: /usr/share/elasticsearch/data
name: pv-storage-elastic-client
- name: elastic-certificates
readOnly: true
mountPath: "/usr/share/elasticsearch/config/elastic-certificates.p12"
subPath: elastic-certificates.p12
- mountPath: /etc/localtime
name: localtime
securityContext:
privileged: true
volumes:
- name: elastic-certificates
secret:
secretName: elastic-certificates
- hostPath:
path: /etc/localtime
name: localtime
volumeClaimTemplates:
- metadata:
name: pv-storage-elastic-client
spec:
accessModes: [ "ReadWriteOnce" ]
storageClassName: "elasticsearch"
resources:
requests:
storage: 100Gi部署service
apiVersion: v1
kind: Service
metadata:
namespace: elasticsearch
name: elasticsearch-master
labels:
app: elasticsearch
role: master
spec:
selector:
app: elasticsearch
role: master
type: NodePort
ports:
- port: 9200
nodePort: 30001
targetPort: 9200
---
apiVersion: v1
kind: Service
metadata:
namespace: elasticsearch
name: elasticsearch-data
labels:
app: elasticsearch
role: data
spec:
selector:
app: elasticsearch
role: data
type: NodePort
ports:
- port: 9200
nodePort: 30002
targetPort: 9200
---
apiVersion: v1
kind: Service
metadata:
namespace: elasticsearch
name: elasticsearch-client
labels:
app: elasticsearch
role: client
spec:
selector:
app: elasticsearch
role: client
type: NodePort
ports:
- port: 9200
nodePort: 30003
targetPort: 9200设置ES集群密

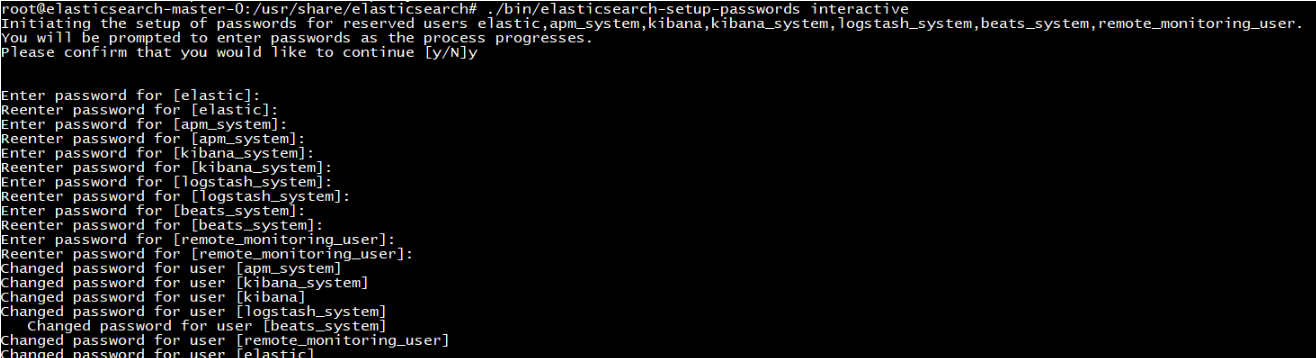

进入master角色中的一台，例如elasticsearch-master-0
执行命令：
./bin/elasticsearch-setup-passwords interactive
部署Kibana7.16.2
1.创建Secret
#密码写elastic用户的密码（跟上面创建的要相同）
kubectl -n elasticsearch create secret generic elasticsearch-password --from-literal password=xxxxx
2、部署Kibana
apiVersion: v1
kind: ConfigMap #配置映射
metadata:
namespace: elasticsearch
name: kibana-config #映射配置名字
labels:
app: kibana
data:
kibana.yml: |-
server.host: 0.0.0.0
i18n.locale: zh-CN #中文支持
elasticsearch: #es密码设置
hosts: ${ELASTICSEARCH_HOSTS}
username: ${ELASTICSEARCH_USER}
password: ${ELASTICSEARCH_PASSWORD}
---
kind: Deployment
apiVersion: apps/v1
metadata:
labels:
app: kibana
name: kibana
namespace: elasticsearch
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
app: kibana
template:
metadata:
labels:
app: kibana
spec:
containers:
- name: kibana
image: kibana:7.16.2
imagePullPolicy: IfNotPresent
ports:
- containerPort: 5601
protocol: TCP
env:
- name: SERVER_PUBLICBASEURL
value: "http://0.0.0.0:5601"
- name: I18N.LOCALE
value: zh-CN
- name: ELASTICSEARCH_HOSTS
value: "http://elasticsearch-master:9200"
- name: ELASTICSEARCH_USER
value: "elastic"
- name: ELASTICSEARCH_PASSWORD
valueFrom:
secretKeyRef:
name: elasticsearch-password
key: password
- name: xpack.encryptedSavedObjects.encryptionKey
value: "min-32-byte-long-strong-encryption-key"
volumeMounts:
- name: kibana-config
mountPath: /usr/share/kibana/config/kibana.yml
readOnly: true
subPath: kibana.yml
- mountPath: /etc/localtime
name: localtime
volumes:
- name: kibana-config #挂在映射配置
configMap:
name: kibana-config #映射配置的名字
- hostPath:
path: /etc/localtime
name: localtime
---
kind: Service
apiVersion: v1
metadata:
labels:
kub app: kibana
name: kibana-service
namespace: elasticsearch
spec:
ports:
- port: 5601
targetPort: 5601
nodePort: 30004
type: NodePort
selector:
app: kibana- 感谢你赐予我前进的力量
-
微信
支付宝
赞赏者名单
因为你们的支持让我意识到写文章的价值🙏
本文是原创文章，采用 CC BY-NC-ND 4.0 协议，完整转载请注明来自 运维小白
阅读建议
评论
匿名评论
隐私政策
你无需删除空行，直接评论以获取最佳展示效果
